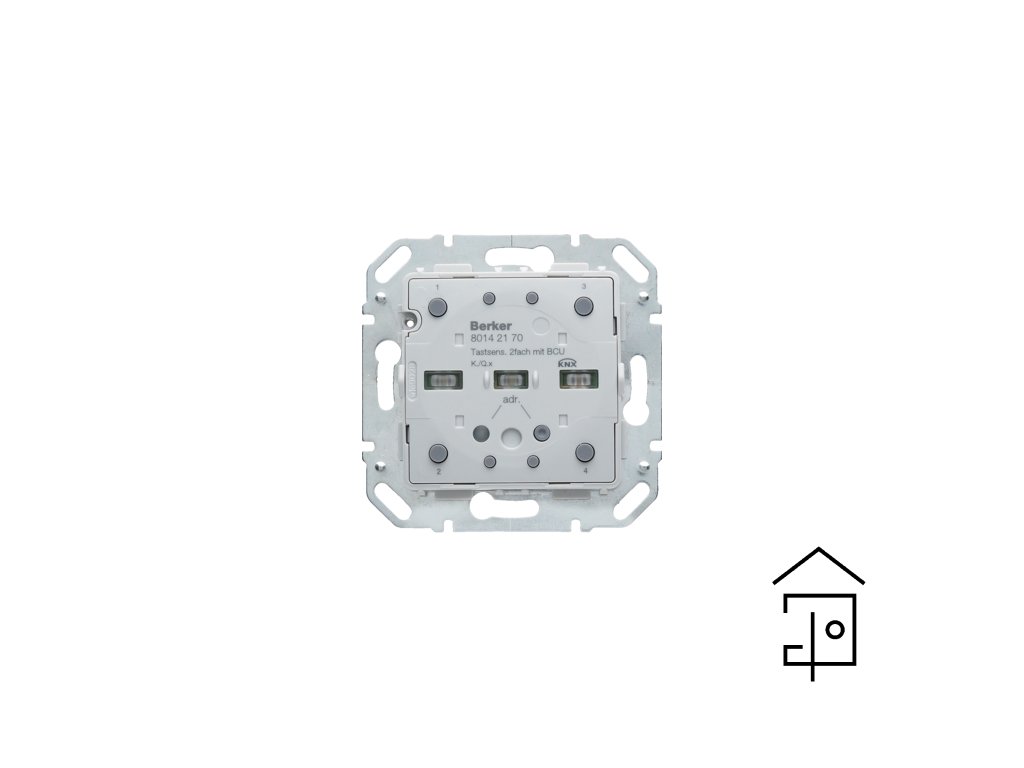

KNX 2-fold button module with integrated bus coupler, Berker Q.x/K.x
Technical characteristics
| Fixing mode | flush-mounting |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Operating voltage over bus | 21…32 V DC |
| Bus current consumption (data transfer) | max. 10 mA |
| Power consumption, KNX | ≈ 108 mW |
| RAL colour | RAL 7035 - Light grey |
| Material | Plastic/metal |
| Type of surface treatment | untreated |
| Insertion depth | 31 mm |
| Height | 71 mm |
| LED - KNX | with two RGB status LEDs configurable in brightness and colour |
|
|
|
| Supported configuration modes | system, easy |
| Product type: | product type: push-button 2gang |
|
|
| Differentiation characteristic 1 - Sales | with RGB LED |
| Differentiation characteristic 2 - Sales | with integrated temperature sensor |
| Differentiation characteristic 3 - Sales | with integral bus coupling unit |
| Protection index IP | IP20 |
| Halogen free | no |
|
|
| Operating temperature | -5…45 °C |
| Storage/transport temperature | -20…70 °C (storage at > 45°C reduces the service life) |
|
|
| Application, usage | KNX - operating systems |
| Product family | product family: push-button |
| Main design line | KNX - Berker Q.x/K.x |
| Secondary design line(s) | KNX, Berker Q.1, Berker Q.3, Berker Q.7, Berker Q.9, Berker K.1, Berker K.5 |
Attachments
Zusätzliche Parameter
| Kategorie: | MODULE |
|---|---|
| Gewicht: | 0.057 kg |
| Design: | Berker S.1/B.3/B.7 |
| Material: | Metal, Plastic |
| Profession / Application: | KNX - control systems |
| Installation: | in-wall installation |
| Temperature: | operating -5 ... +45`C |
