    Home / MODULE / 5-button sensor with thermostat and display B.IQ white, matt

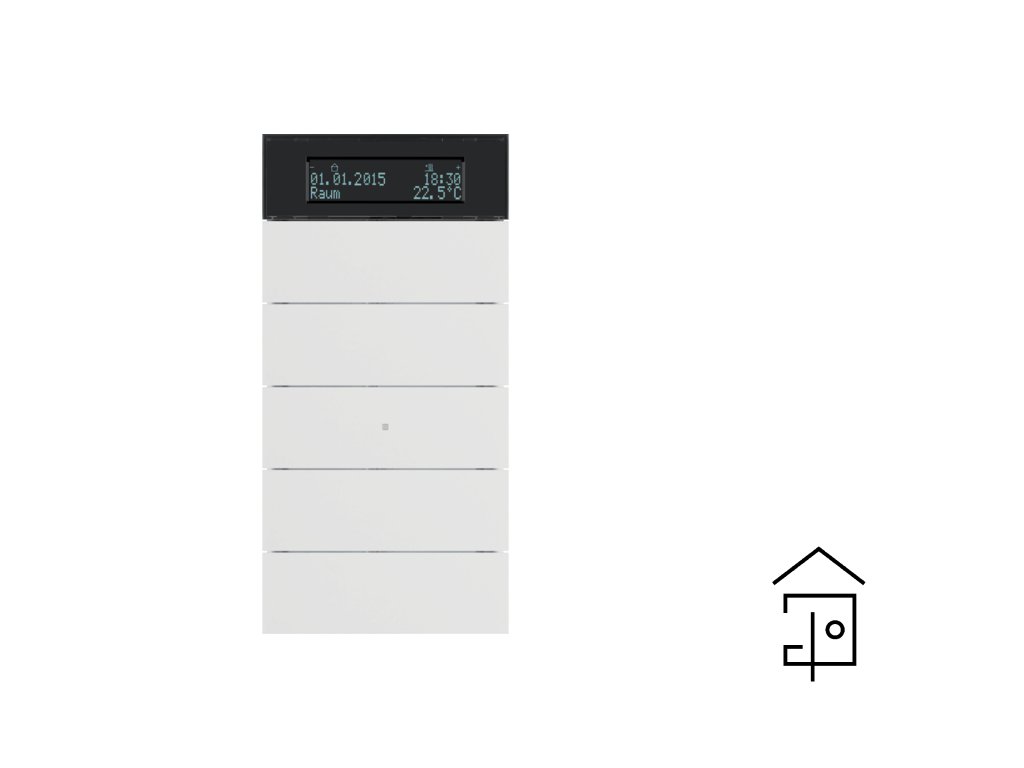

    5-button sensor with thermostat and display B.IQ white, matt

    Nicht bewertet
    Marke: Berker
    Verfügbarkeit 1 - 2 weeks
    Lieferung bis:
    08/01/2025
    Lieferoptionen
    Artikelnummer: 75665599
    541,18 € / St 447,26 € ohne MwSt.
    5-button sensor with thermostat and display B.IQ white, matt
    Nicht bewertet
    Marke: Berker
    5-button sensor with thermostat and display B.IQ white, matt

    Technical characterisitcs



    Architecture
    Technical version: 5gang

    Functions
    • for switch, push-button, dimmer, blind and thermostat functions
    • with valve protection function
    • button help function can be activated
    • controller operating modes: comfort, standby, night and frost/heat protection mode
    • with room temperature timer and 2-week timer functions

    Compatibility
    • extension unit for light scene push-button

    Controls and indicators
    Dimming: area dimming
    • text display (ASCII-format)
    • blind operating concepts short-long-short and long-short parameterisable
    • one push-button operation for switching, pushing, shutters and dimming
    • with 2 additional display buttons
    • LC display with symbols and illumination, switchable via object
    • display of operating mode, controller lockout, room/outside temperature, time (clock required)

    Connectivity
    • with button blocking function

    Measurement
    • value transmitter for dimming, position, brightness and temperature values 1 and 2 byte

    Materials
    RAL colour: RAL 9010 - Pure white
    Colour of design line: polar white
    Material: thermoplastic
    Surface appearance: matt

    Dimensions
    Height: 178,8 mm
    Width: 88,5 mm

    LED control
    • with blue operation LED and 10 white status LEDs (labelling field illumination)

    Connection
    • For flush-mounted bus coupling unit for B.IQ with thermostat

    Settings
    • end customer display scope parameterisable
    • presence button parameterisable to extend comfort
    • single and two push-button operation parameterisable
    • programmable from ETS2, V1.2a

    Accessories included
    • for installation in single standard wall boxes

    Equipment
    Product type: product type: B.IQ
    • for heating and/or cooling mode with/without auxiliary step
    • for individual single room temperature control
    • control parameter for heating / cooling unit pre-set
    • for continuous (PI) or switched (2-point) control of max. 2 control circuits

    Use
    • Display

    Software
    Update: with flash-controller technology

    Safety
    Halogen free: no
    • with dismantling protection
    • alarm telegram after disconnection from bus coupling unit 1 bit, 1 or 2 byte

    Use conditions
    Operating temperature: -5 … 45 °C
    • provision of the internal temperature value via communication object
    • temperature measurement via internal temperature sensor and/or external communication object (weighting ratio parameterisable)

    Identification
    Application, usage: KNX - operating systems
    Product family: product family: push-button
    Main design line: KNX - Berker B.IQ
    Secondary design line(s): Berker B.IQ, KNX

    Zusätzliche Parameter

    Kategorie: MODULE
    Gewicht: 0.345 kg
