SCHUKO socket outlet with residual current circuitbreaker Berker K.1/K.5
Characteristics
Architecture
| Fixing mode: | flush-mounting |
| Installation mode: | with spreader claws |
Main electrical features
| Nominal/rated voltage: | 250 V/250 V AC |
| Frequency: | 50/60 Hz |
| Rated current: | 16 A |
| Power consumption: | 0,25 W/0,35 VA |
Connection
| Conductor cross-section: | max. 2,5 mm² |
| Insertion depth: | 32 mm |
| Connection terminals: | IEC 60884-1 |
Material & Colour

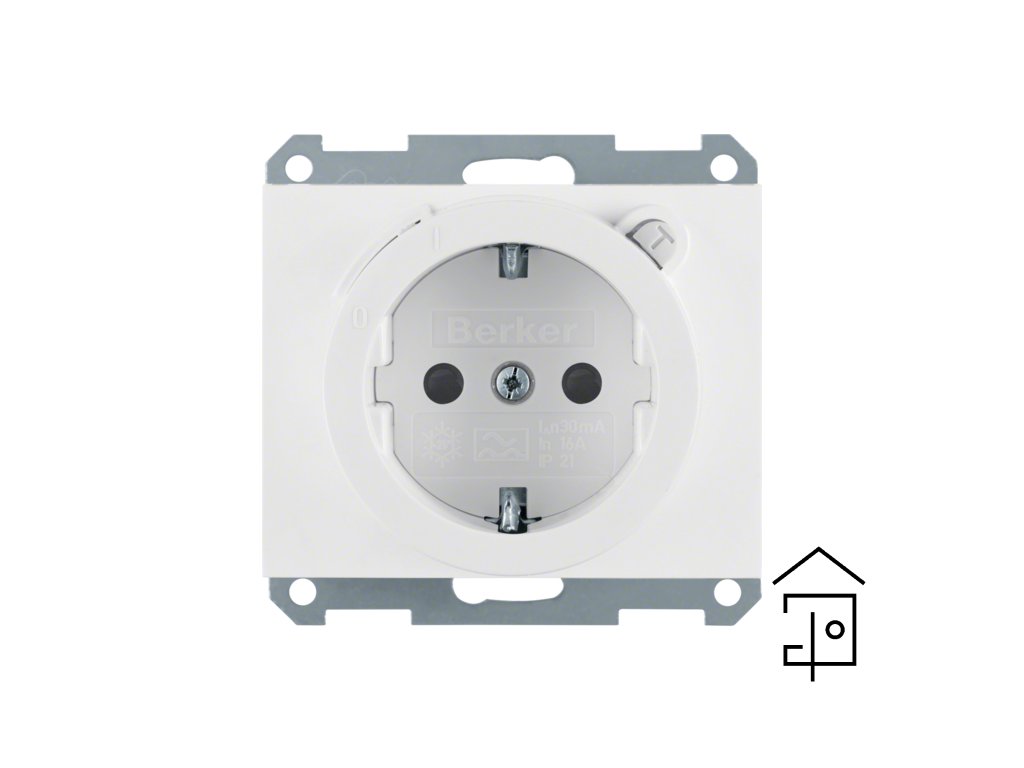

| Colour of design line: | polar white |
| Colour: | white |
| RAL colour: | RAL 9010 - pure white |
| Material: | Thermoplastic |
| Surface appearance: | Glossy |
| Colour of design line: | anthracite |
| Colour: | anthracite grey |
| RAL colour: | RAL 7021 - black grey |
| Material: | Thermoplastic |
| Surface appearance | Matt |

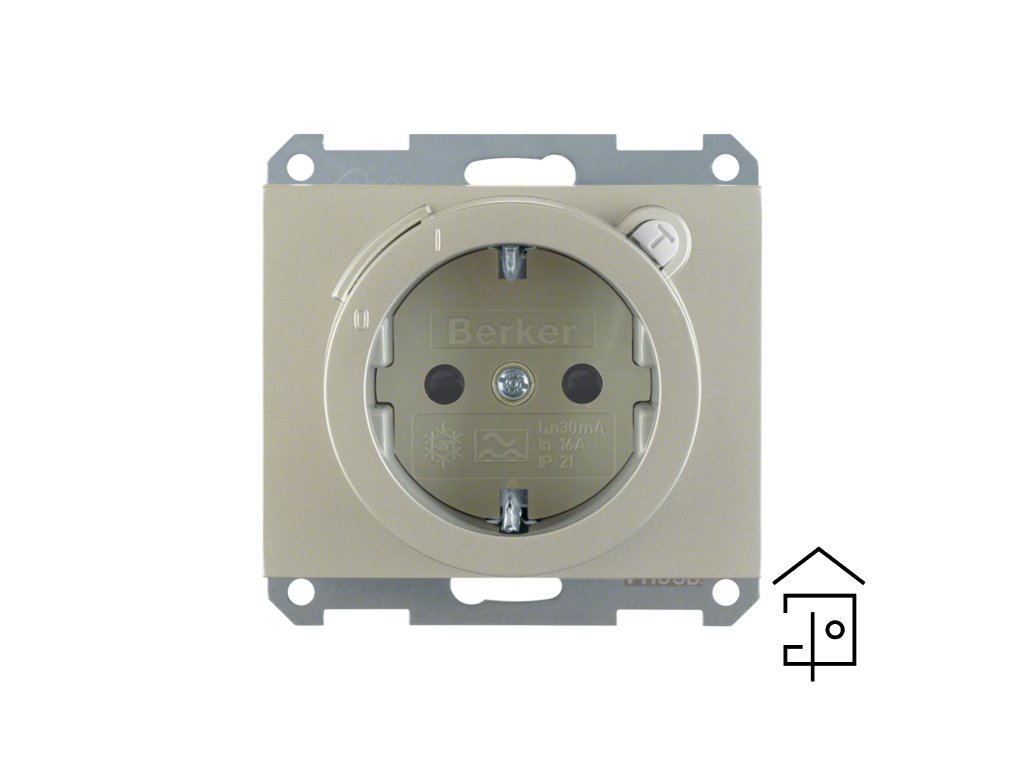

| Colour of design line: | Stainless steel |
| Colour: | Stainless steel optics |
| RAL colour: | RAL 9022 - pearl light grey |
| Material: | Thermoplastic |
| Surface appearance | Glossy |

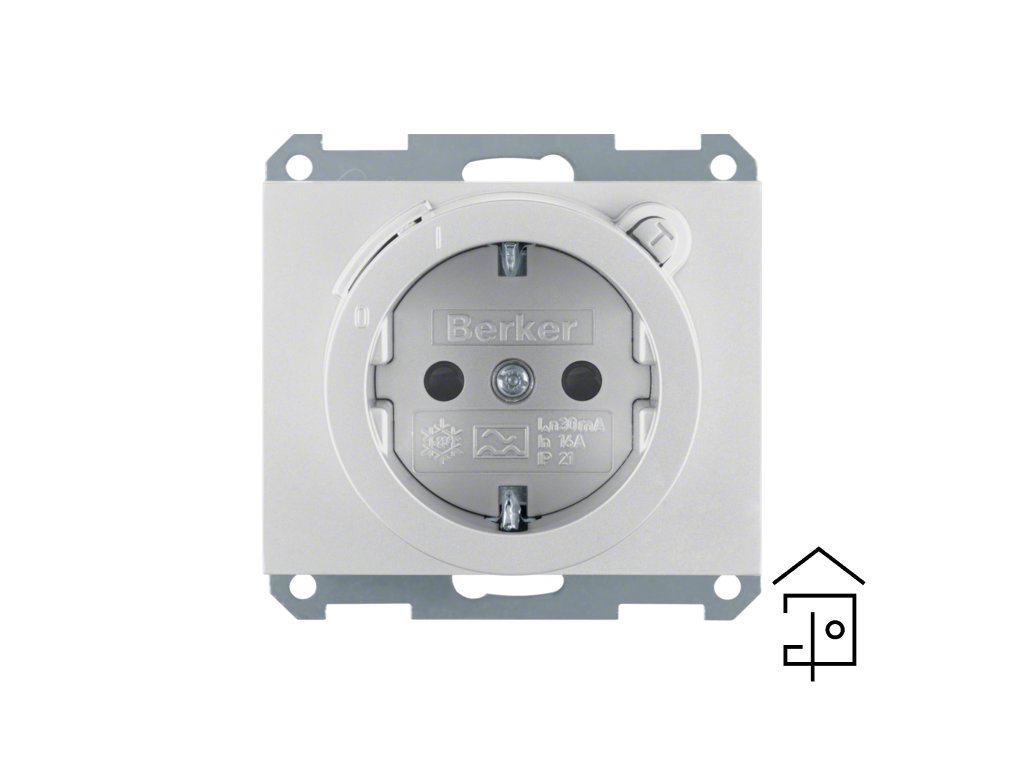

| Colour of design line: | aluminium |
| Colour: | aluminium optics |
| RAL colour: | RAL 9006 - white aluminium |
| Material: | Thermoplastic |
| Surface appearance | Matt |
Additional information
- Plug-in lift terminals
- Protection index IP20
- Protection against mechanical impacts IK07
- With enhanced contact protection
- measurement error current 30 mA
- surge current resistance 250 A (8/20) µs
- short-circuit resistance (with back-up fuse 20 AgL) 3 kA
- trigger time ≤ 30 ms
- through-wired socket outlets are also protected.
- for use in old installations with provision made to safeguard existing standards without additional protective regulations
- to protect connected and downstream loads
- type A for alternating currents and pulsating direct currents
Attachments
Zusätzliche Parameter
| Kategorie: | MODULE |
|---|---|
| Design: | Berker K.1/K.5 |
| Material: | Thermoplastic |
| Colour: | White, Anthracite matt, Silver matt, Stainless steel, Aluminium |
| Brand: | Berker |
