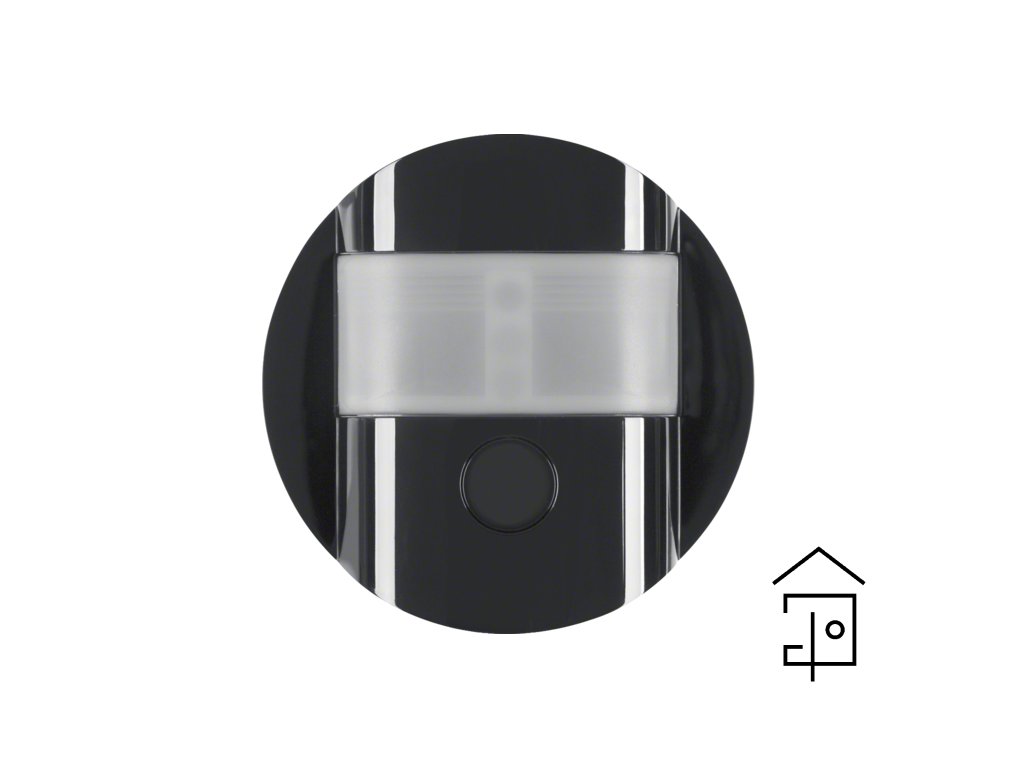

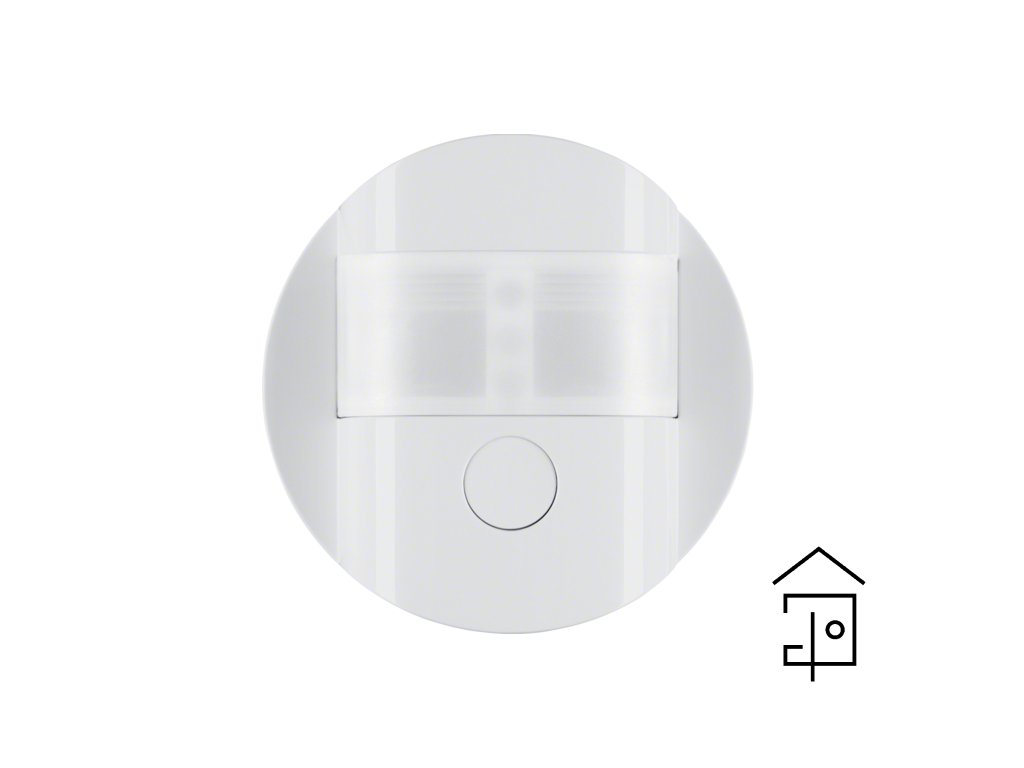

IR motion detector comfort 2,2 m Berker R.1/R.3/R.8
Technical characteristics
Technical Characteristics
| Fixing mode | flush-mounting |
| Operating mode | step operation with immunity time (e.g. for stair light/impact current circuits) |
|
|
|
|
|
|
|
|
|
|
|
| immunity time | ≈ 10 s |
| Relative humidity (without condensation) | 0…65 % (without condensation) |
| Detection field, rectangular shaped | ≈ 8 x 12 m |
| Range, frontal | ≈ 8 m |
| Range, side | each ≈ 6 m |
| Number of detection levels | 3 |
| Detection angle, settable | each side ≈ 45…90 ° |
| Colour of design line | polar white |
| Colour | polarwhite |
| Material | thermoplastic |
| Assembling height | 34 mm |
| Nominal mounting height | 2,2 m |
| Diameter | 57,6 mm |
| Response brightness, adjustable | ≈ 5…1000 lx , daytime operation |
| LED | with operation and status LED, red/green/orange, LED application module/insert compatibility display |
| Response value luminosity adjustable | yes |
| Response value sensitivity adjustable | yes |
| Response sensitivity, settable | 10…100 % |
| Short time mode | 200 ms |
| Delay time | ≈ 180 s |
| Delay time, adjustable | ≈ 10 s…30 mn |
| Switch-off pre-warning to dimming value 50% for | 30 s |
| Protection index IP | IP20 |
|
|
| Operating temperature | -5…45 °C |
|
|
| Application, usage | Motion detector |
| Main design line | Berker R.1/R.3/R.8/Serie 1930/R.classic |
| Secondary design line(s) | Motion detector, Berker R.1, Berker R.3, Berker R.8 |
Attachments
Zusätzliche Parameter
| Kategorie: | MODULE |
|---|---|
| Design: | Berker R.1/R.3/R.8 |
| ? Motion detection: | Electronic platform |
| Temperature: | operating -5 ... +45`C |
