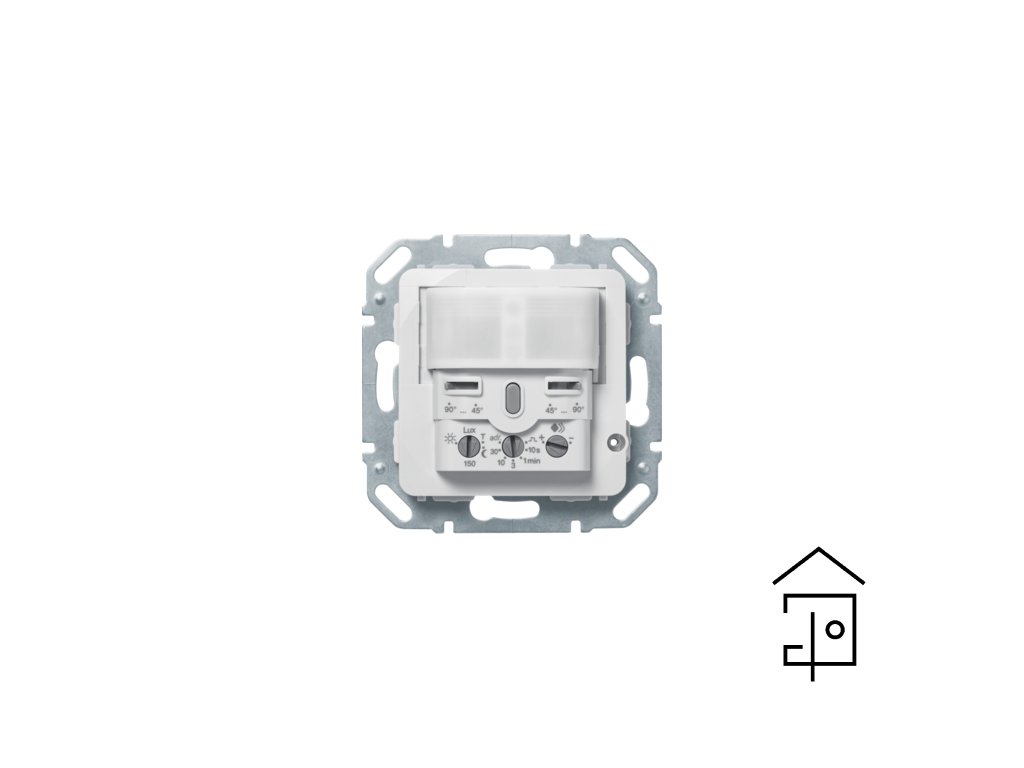

KNX motion detector module 2.2 m with integrated temperature sensor, with integral bus coupling unit, KNX - Berker S.1/B.3/B.7
Technical characterisitcs
| Fixing mode | flush-mounting |
| Technical version | without cover |
| Max. temporisation | 30 mn |
| Operating mode | with 3 operating modes: automatic/permanent ON/permanent OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Operating voltage over bus | 21…32 V DC |
| Bus current consumption (data transfer) | 10 mA |
| Detection field, rectangular shaped | ≈ 8 x 12 m |
| Max. transmission range frontally | 8 m |
| Max. transmission range sideways | 6 m |
| Detection angle vertical | 0 / 7 ° |
| Detection angle, settable | each side ≈ 45…90 ° |
| Detection angle horizontal | 90 / 180 ° |
| Sensor type | detector of movement |
| Material | Plastic/metal |
| Surface appearance | other |
| Optimum mounting height | 2,2 m |
| Response brightness, adjustable | ≈ 5…1000 lx , daytime operation |
| LED | Operating mode display via status LED, red/green/orange |
| Installation mode | with spreader claws, with dismantling protection |
|
|
|
| Supported configuration modes | system, easy |
| Min. temporisation | 10 s |
| Delay time, adjustable | 10 s…30 mn |
| Differentiation characteristic 2 - Sales | with integrated temperature sensor |
| Differentiation characteristic 3 - Sales | with integral bus coupling unit |
| Halogen free | no |
| Operating temperature | -5…45 °C |
| Storage/transport temperature | -20…70 °C |
| Application, usage | KNX - sensors |
| Main design line | KNX - Berker S.1/B.3/B.7 |
| Secondary design line(s) | KNX, Berker S.1, Berker B.3, Berker B.7 |
Zusätzliche Parameter
| Kategorie: | MODULE |
|---|---|
| Gewicht: | 0.068 kg |
