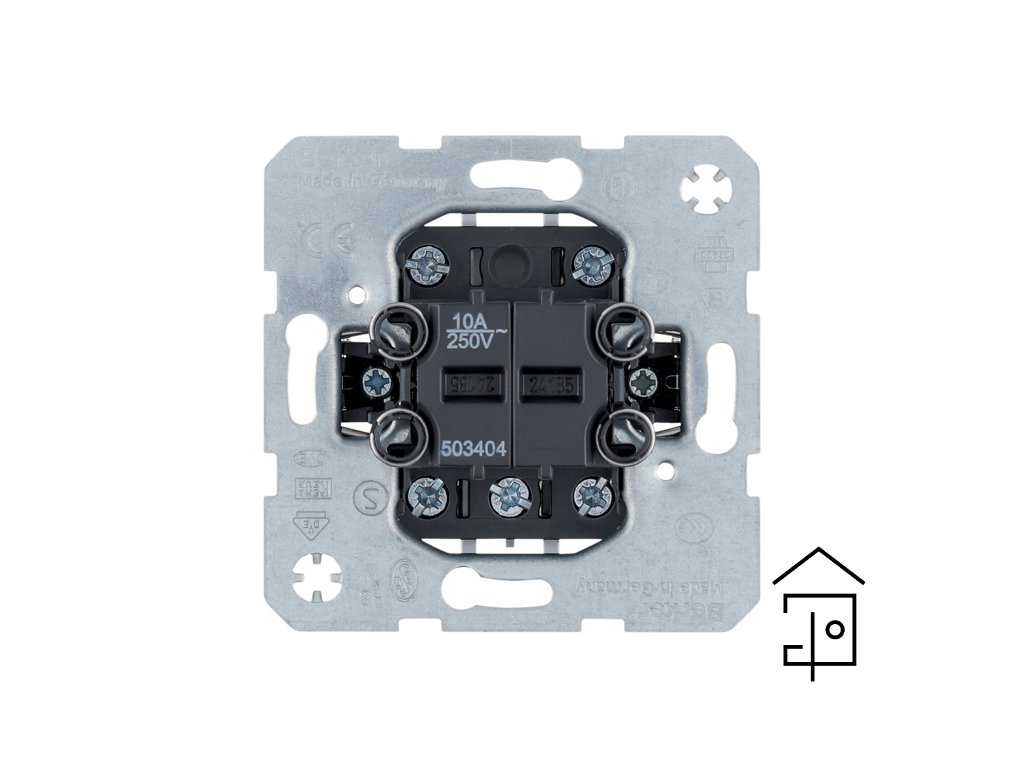

Push button, cradle blinds, shift 1/0+1/0+1/0+1/0, 10 A, 250 VAC, 4x NO for 2x blinds,
Technical Characteristics
| Type of control unit | double rocker |
|
|
| Nominal voltage | 250 V |
| Rated voltage | 250 V AC |
| Momentary-contact current | 10 A |
| Material | Plastic/metal |
| Depth | 41,6 mm |
| Contact spacing | > 3 mm |
| Height | 71 mm |
| Width | 71 mm |
| Installation mode | with spreader claws |
| Connection terminals | according to IEC 60669-1 |
| Connection terminals | according to VDE 0632-1 |
| Type of connection | Screw connection |
|
|
|
| Differentiation characteristic 3 - Sales | with neutral-position |
| Protection index IP | IP20 |
| Application, usage | Light control |
| Main design line | Light control |
| Information text | spreader claws, insulated to the supporting ring, self-resetting |
Downloads
| Technical sheet.pdf |
Zusätzliche Parameter
| Kategorie: | SCHALTERPROGRAMME |
|---|---|
| Gewicht: | 0.079 kg |
| Brand: | Berker |
