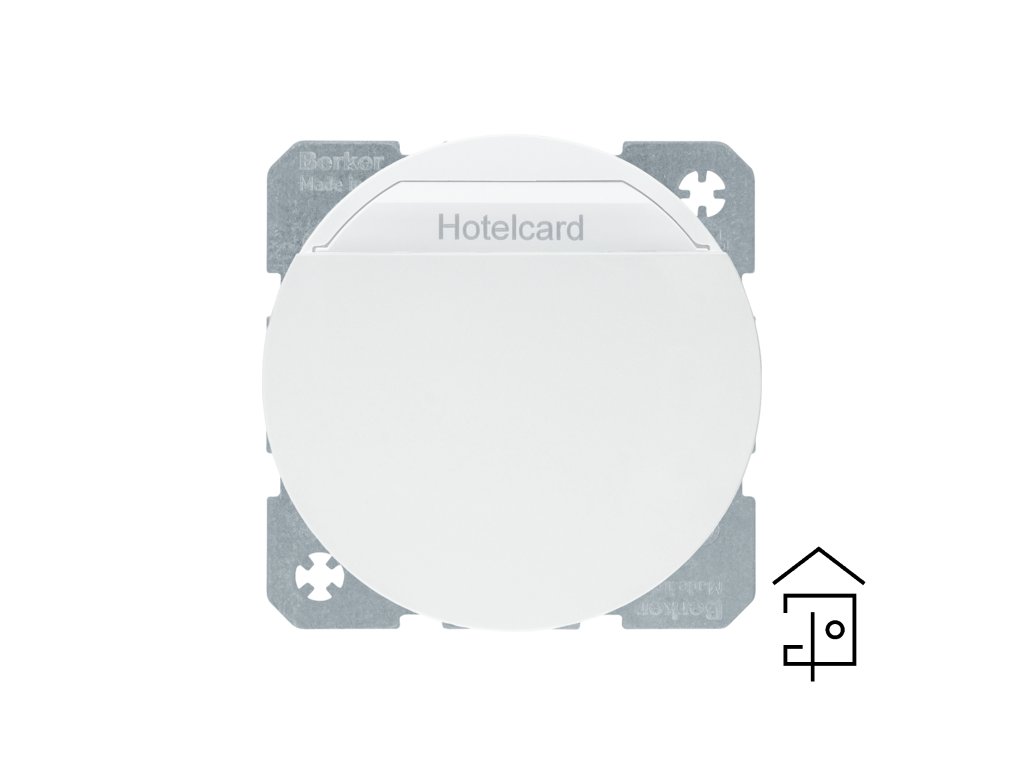

Relay switch with centre plate for hotel card Berker R.1/R.3/R.8
Technical Characteristics
| Fixing mode | flush-mounting |
|
| Nominal voltage | 230 V |
| Rated voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Inductive load at cos φ = 0.6 | max. 6 A |
| Switching current | 10 A /230 V AC1 |
| Conventional transformers | 1500 VA |
| Electronic transformers | 1500 W |
| Power consumption | < 0.2 W |
| Colour of design line | polar white |
| Colour | polarwhite |
| Colour | white |
| RAL colour | RAL 9010 - Pure white |
| Material | Plastic/metal |
| Surface appearance | glossy |
| Colour of design line | black |
| Colour | black |
| Colour | deep black |
| RAL colour | RAL 9005 - Jet black |
| Material | Plastic/metal |
| Surface appearance | glossy |
| Depth | 57,3 mm |
| Insertion depth | 32 mm |
| Card width | max. 55 mm |
| Card thickness | 0,8…1,2 mm |
| Height | 69,5 mm |
| Width | 69,5 mm |
| Compact fluorescent lamps | 500 W |
| Fluorescent lamps in duo circuit | 1500 W |
| LED | illuminated with blue LED if hotel card is not inserted |
| 230 V incandescent lamps and halogen lamps | 1500 W |
| Installation mode | with spreader claws |
| Screw terminals (max.) | 2 x 2,5 mm² |
|
|
| Delay time incrementally adjustable | 0, 15, 30, 60 s |
|
|
|
|
|
| Protection index IP | IP20 |
| Operating temperature | -5…50 °C |
| Storage/transport temperature | -25…70 °C (storage at > 45°C reduces the service life) |
Attachments
Zusätzliche Parameter
| Kategorie: | MODULE |
|---|---|
| Design: | Berker R.1/R.3/R.8 |
| Voltage: | nominal 230V +10/-15% |
| Power consumption: | Power consumption < 0,2 W |
| Connection: | with screw terminals |
| Temperature: | operating -5 ... +50`C |
| Frequency: | 50/60 Hz |
