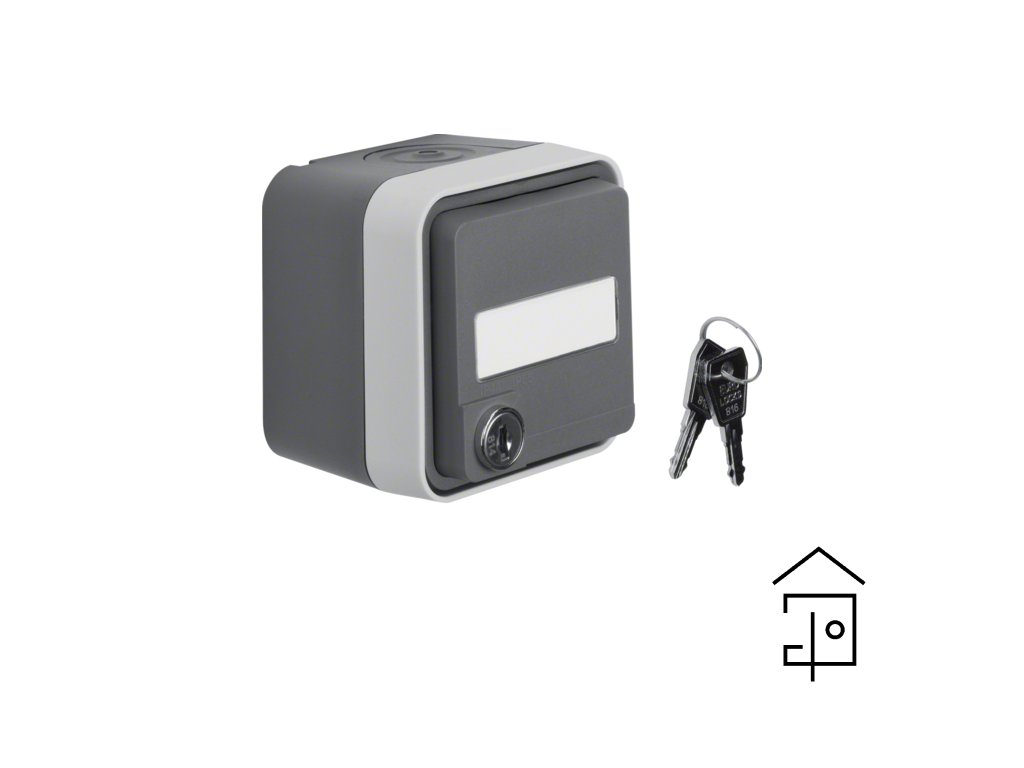

SCHUKO socket outlet with hinged cover surface-mounted with labelling field, Lock - differing lockings, enhanced contact protection, Berker W.1, grey/light grey matt
| Design | according to DIN 49440 |
| Fixing mode | surface-mounting |
|
| Nominal voltage | 250 V |
| Rated voltage | 250 V AC |
| Frequency | 50 Hz |
| Rated current | 16 A |
| Rated current | 16 A |
| Cover | Complete housing |
|
|
| Colour of design line | grey/light grey |
| Colour | iron grey |
| Colour | dark grey |
| RAL colour | RAL 7011 - Iron grey |
| Material | thermoplastic |
| Surface appearance | matt |
| Insertion depth | 32 mm |
| Labelling field (W x H) | 50 x 16 mm |
| Height | 76 mm |
| Width | 76 mm |
| Installation mode | for screw fastening |
| Conductor cross-section | 1…2,5 mm² |
| Connection terminals | according to IEC 60884-1 |
| Connection terminals | according to VDE 0620-1:2021-02 |
|
|
|
|
|
|
|
|
| Differentiation characteristic 1 - Sales | with labelling field |
| Differentiation characteristic 2 - Sales | Lock - differing lockings |
| Differentiation characteristic 3 - Sales | enhanced contact protection |
| Protection index IP | IP55 |
| Enhanced contact protection | according to IEC 60884-1 |
| Enhanced contact protection | according to VDE 0620-1:2021-02 |
|
|
|
|
| Operating temperature | -40…30 °C |
| Storage/transport temperature | -50…50 °C |
| Application, usage | Surface-mounted wet-room installation |
| Main design line | Berker W.1 |
Attachments
Additional parameters
| Category: | MODULES |
|---|---|
| Weight: | 0.123 kg |
| ? Protection index IP: | IP55 |
