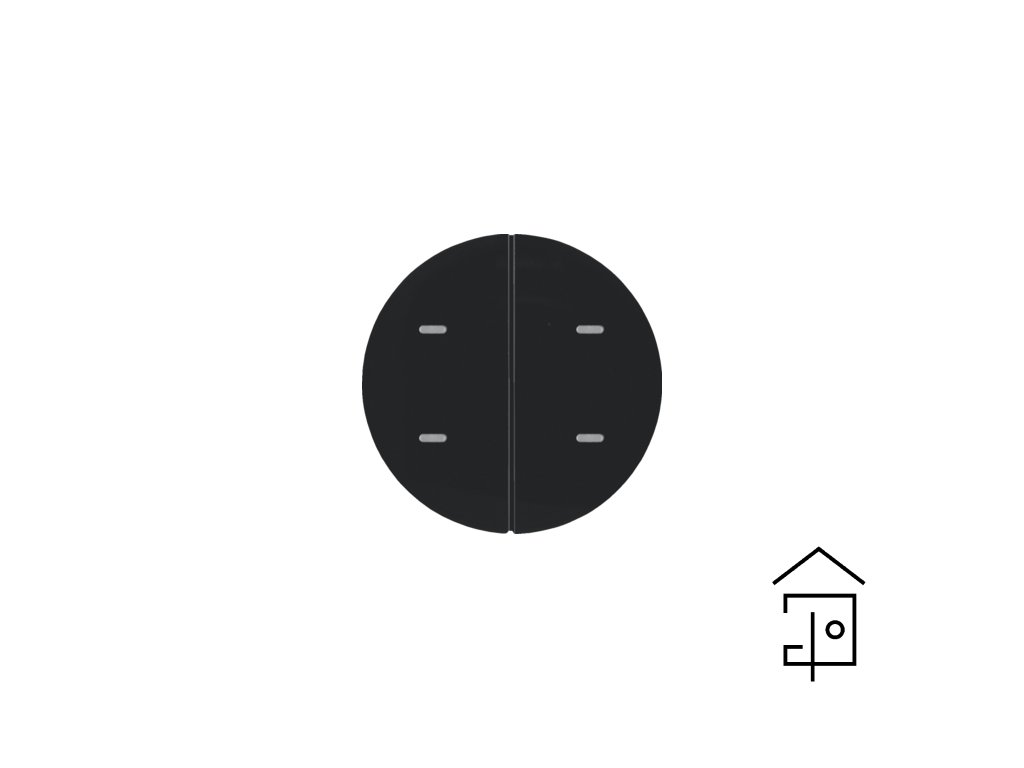

    Sensor, push-button, 2-fold, Comfort with KNX label field, Berker R.1/R.3, black, gloss

    Not rated
    Brand: Berker
    Availability Currently unavailible
    Delivery offer
    Code: 80162865
    2 623,28 Kč / pcs 2 168 Kč excl. VAT
    Sensor, push-button, 2-fold, Comfort with KNX label field, Berker R.1/R.3, black, gloss
    Not rated
    Brand: Berker
    Sensor, push-button, 2-fold, Comfort with KNX label field, Berker R.1/R.3, black, gloss

    Technical characteristics

    Architecture
    Fixing mode flush-mounting
    Technical version 2gang

    Functions
    With room temperature controller no
    • operating concept "independent push-button" function predefined
    • operating concept for "roller shutter/blind" function predefined
    • switching of scenes (1..8) possible
    • Orientation LED can be controlled via object
    • brightness value of the status LED for day/nighttime operation preset, status LED for day/nighttime operation can be controlled via object
    • integrated temperature sensor with output of the measured values
    • Colour of status LED uniformly adjustable for complete device
    • push-button functions: including switching, dimming, roller shutter/blind, timer, priority, temperature setpoint adjustment, operating mode changeover
    • Function for manual interruption of automatic functions already triggered
    • operating surfaces as buttons (single-surface operation) and rockers (two-surface operation)
    • the brightness of status LEDs are individually adjustable for button/ rocker function
    • brightness value of the status LEDs for day/nighttime operation adjustable via object or manually
    • value transmitter for dimming, position, brightness temperature values 1 and 2 byte
    • button/rocker functions for switching, dimming, roller shutter/blind, value transmitter 1/2 byte, room thermostat extension unit, priority, scene, automatic control deactivation
    • integrated temperature sensor with output of the measured values via object
    • button functions for switching, dimming, roller shutter/blind, timer, value transmitter 1/2 byte, room thermostat extension unit, priority, scene, 2-channel mode, step switch, automatic control deactivation
    • rocker functions for switching, dimming, roller shutter/blind, value transmitter 1/2 byte, room thermostat extension unit, priority, scene, 2-channel mode, automatic control deactivation
    • parameter defineable lock function
    • 3-step switch, function for incremental selection of up to 7 stored values
    • Status LED configurable in its colour per button

    Compatibility
    • extension unit for light scene push-button

    Controls and indicators
    With LED indication yes
    Number of buttons 2
    • operating areas configurable as one or two-area operation

    Electric current
    Bus current consumption (data transfer) max. 20 mA

    Power
    Power consumption, KNX ≈ 150 mW

    Measurement
    • value transmitter for dimming, position, brightness and temperature values 1 and 2 byte

    Screen
    With display no

    Materials
    Colour of design line black
    Colour independent of design lines black
    Colour black
    RAL colour RAL 9005 - Jet black
    Material thermoplastic
    Surface appearance glossy
    Surface protection Brilliant
    Type of surface treatment untreated
    Material family Plastic

    LED control
    LED with white operating LED, with 2 RGB status LEDs per rocker

    Connection
    • for bus coupling unit flush-mounted

    Settings
    Supported configuration modes system, easy
    • single and two push-button operation parameterisable

    Scope of delivery
    Bus connection included no

    Accessories included
    Inscribable, with labelling field no

    Equipment
    Number of actuation points 4
    With anti-theft/dismantling protection no
    Product type: product type: push-button 2gang

    Use
    Differentiation characteristic 2 - Sales and RGB LED
    Differentiation characteristic 3 - Sales with integrated temperature sensor

    Safety
    Protection index IP IP20
    Halogen free no
    • with dismantling protection
    • alarm telegram after disconnection from bus coupling unit 1 bit or 1 byte

    Use conditions
    Operating temperature -5…45 °C
    Storage/transport temperature -20…70 °C (storage at > 45°C reduces the service life)
    • integrated temperature sensor with output of the measured values via object

    Identification
    Application, usage KNX - operating systems
    Product family product family: push-button
    Main design line KNX - Berker R.1/R.3/Serie 1930/R.classic
    Secondary design line(s) KNX, Berker R.1, Berker R.3, Serie 1930, Series R.classic



    Architecture
    Fixing mode flush-mounting
    Technical version 2gang

    Functions
    With room temperature controller no
    • operating concept "independent push-button" function predefined
    • operating concept for "roller shutter/blind" function predefined
    • switching of scenes (1..8) possible
    • Orientation LED can be controlled via object
    • brightness value of the status LED for day/nighttime operation preset, status LED for day/nighttime operation can be controlled via object
    • integrated temperature sensor with output of the measured values
    • Colour of status LED uniformly adjustable for complete device
    • push-button functions: including switching, dimming, roller shutter/blind, timer, priority, temperature setpoint adjustment, operating mode changeover
    • Function for manual interruption of automatic functions already triggered
    • operating surfaces as buttons (single-surface operation) and rockers (two-surface operation)
    • the brightness of status LEDs are individually adjustable for button/ rocker function
    • brightness value of the status LEDs for day/nighttime operation adjustable via object or manually
    • value transmitter for dimming, position, brightness temperature values 1 and 2 byte
    • button/rocker functions for switching, dimming, roller shutter/blind, value transmitter 1/2 byte, room thermostat extension unit, priority, scene, automatic control deactivation
    • integrated temperature sensor with output of the measured values via object
    • button functions for switching, dimming, roller shutter/blind, timer, value transmitter 1/2 byte, room thermostat extension unit, priority, scene, 2-channel mode, step switch, automatic control deactivation
    • rocker functions for switching, dimming, roller shutter/blind, value transmitter 1/2 byte, room thermostat extension unit, priority, scene, 2-channel mode, automatic control deactivation
    • parameter defineable lock function
    • 3-step switch, function for incremental selection of up to 7 stored values
    • Status LED configurable in its colour per button

    Compatibility
    • extension unit for light scene push-button

    Controls and indicators
    With LED indication yes
    Number of buttons 2
    • operating areas configurable as one or two-area operation

    Electric current
    Bus current consumption (data transfer) max. 20 mA

    Power
    Power consumption, KNX ≈ 150 mW

    Measurement
    • value transmitter for dimming, position, brightness and temperature values 1 and 2 byte

    Screen
    With display no

    Materials
    Colour of design line black
    Colour independent of design lines black
    Colour black
    RAL colour RAL 9005 - Jet black
    Material thermoplastic
    Surface appearance glossy
    Surface protection Brilliant
    Type of surface treatment untreated
    Material family Plastic

    LED control
    LED with white operating LED, with 2 RGB status LEDs per rocker

    Connection
    • for bus coupling unit flush-mounted

    Settings
    Supported configuration modes system, easy
    • single and two push-button operation parameterisable

    Scope of delivery
    Bus connection included no

    Accessories included
    Inscribable, with labelling field no

    Equipment
    Number of actuation points 4
    With anti-theft/dismantling protection no
    Product type: product type: push-button 2gang

    Use
    Differentiation characteristic 2 - Sales and RGB LED
    Differentiation characteristic 3 - Sales with integrated temperature sensor

    Safety
    Protection index IP IP20
    Halogen free no
    • with dismantling protection
    • alarm telegram after disconnection from bus coupling unit 1 bit or 1 byte

    Use conditions
    Operating temperature -5…45 °C
    Storage/transport temperature -20…70 °C (storage at > 45°C reduces the service life)
    • integrated temperature sensor with output of the measured values via object

    Identification
    Application, usage KNX - operating systems
    Product family product family: push-button
    Main design line KNX - Berker R.1/R.3/Serie 1930/R.classic
    Secondary design line(s) KNX, Berker R.1, Berker R.3, Serie 1930, Series R.classic



    Attachments

    80162865_Data_Sheet



    Additional parameters

    Category: MODULES
    Weight: 0.023 kg
    Design: Berker R.1/R.3/R.8, Berker R.Classic/1930/glas
    Material: Thermoplastic
    Colour: Black
    Surface: Glossy
    Temperature: operating -5 ... +45`C
