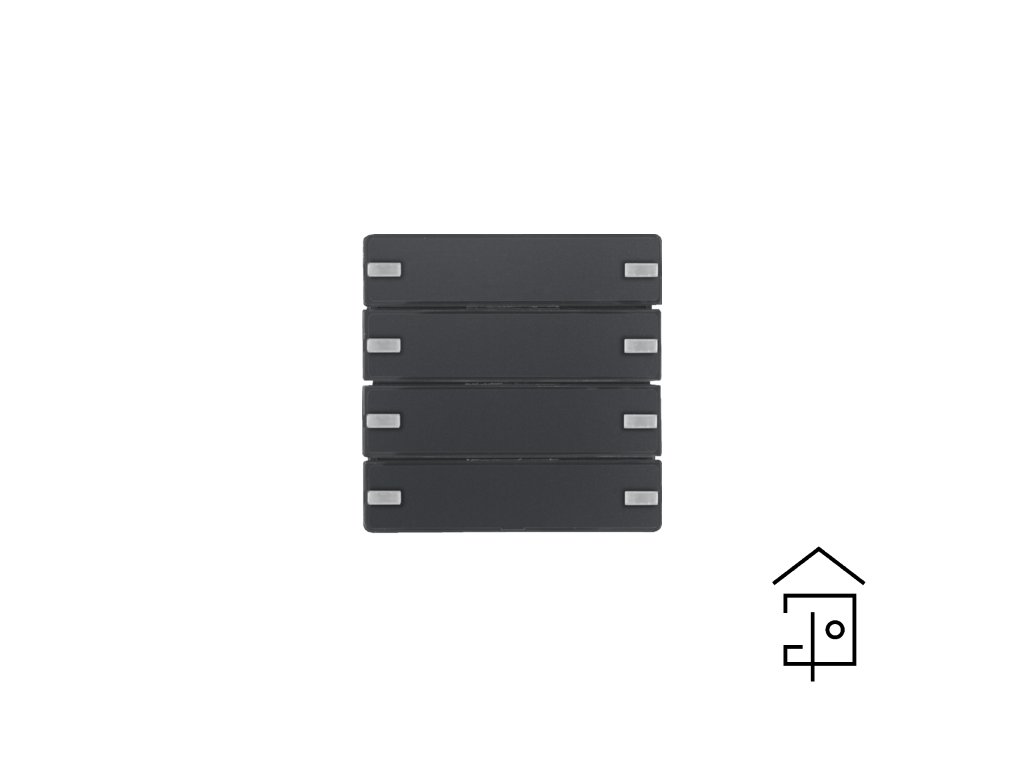

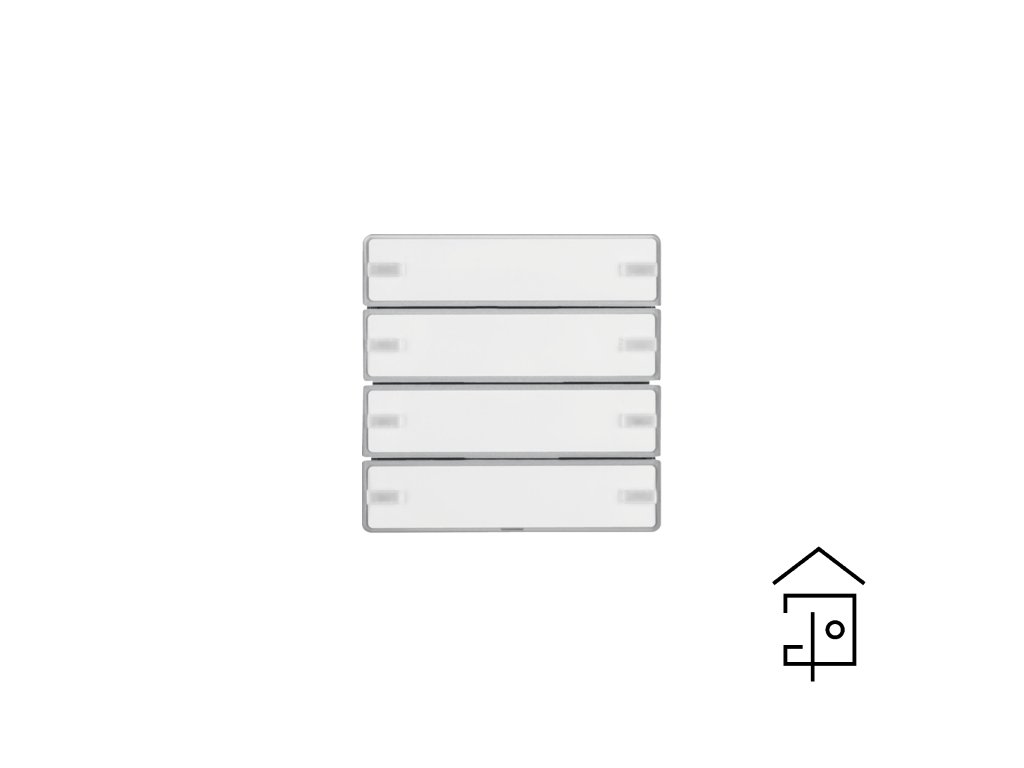

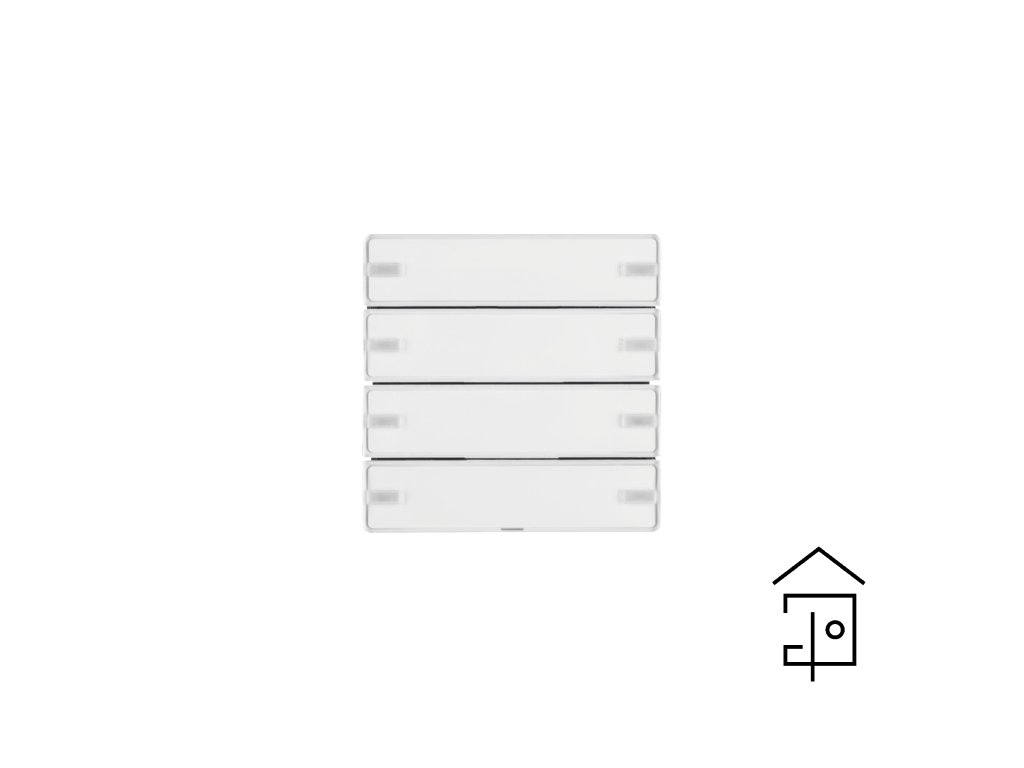

Push-button 4gang with labelling fields, and RGB LED, with integrated temperature sensor, KNX - Berker Q.1/Q.3
Technical characteristics
Fixing mode
- flush-mounting
Functions
- with room temperature controller
- operating concept "independent push-button" function predefined
- operating concept for "roller shutter/blind" function predefined
- switching of scenes (1...8) possible
- orientation LED can be controlled via object
- brightness value of the status LED for day/nighttime operation preset, status LED for day/nighttime operation can be controlled via object
- integrated temperature sensor with output of the measured values
- colour of status LED uniformly adjustable for complete device
- push-button functions: including switching, dimming, roller shutter/blind, timer, priority, temperature setpoint adjustment, operating mode changeover
- function for manual interruption of automatic functions already triggered
- operating surfaces as buttons (single-surface operation) and rockers (two-surface operation)
- the brightness of status LEDs are individually adjustable for button/ rocker function
- brightness value of the status LEDs for day/nighttime operation adjustable via object or manually
- value transmitter for dimming, position, brightness temperature values 1 and 2 byte
- button/rocker functions for switching, dimming, roller shutter/blind, value transmitter 1/2 byte, room thermostat extension unit, priority, scene, automatic control deactivation
- integrated temperature sensor with output of the measured values via object
- button functions for switching, dimming, roller shutter/blind, timer, value transmitter 1/2 byte, room thermostat extension unit, priority, scene, 2-channel mode, step switch, automatic control deactivation
- rocker functions for switching, dimming, roller shutter/blind, value transmitter 1/2 byte, room thermostat extension unit, priority, scene, 2-channel mode, automatic control deactivation
- parameter defineable lock function
- 3-step switch, function for incremental selection of up to 7 stored values
- status LED configurable in its colour per button
Compatibility
- extension unit for light scene push-button
Controls and indicators
- with LED indication
- with 4 buttons
- operating areas configurable as one or two-area operation
Electric current
| Bus current consumption (data transfer): | max. 20 mA |
Power
| Power consumption, KNX: | ≈ 150 mW |
Measurement
- value transmitter for dimming, position, brightness and temperature values 1 and 2 byte
Material & Colour
| Colour of design line: | polar white |
| RAL colour: | RAL 9010 - pure white |
| Material: | thermoplastic |
| Surface appearance: | velvety |
| Colour of design line: | anthracite |
| RAL colour: | RAL 7021 - black grey |
| Material: | thermoplastic |
| Surface appearance: | velvety |
| Colour of design line: | aluminium optics |
| RAL colour: | RAL 9006 - white aluminium |
| Material: | thermoplastic |
| Surface appearance: | velvety |
Dimensions
| Labelling field length (W x H): | 56,4 x 12 mm |
| Height: | 58,7 mm |
| Width: | 58,7 mm |
LED control
- with white operating LED
- with 2 RGB status LEDs per rocker
Connection
- for bus coupling unit flush-mounted
Equipment
- with 8 actuation points
- with anti-theft/dismantling protection
Safety
- protection index IP20
- with dismantling protection
- alarm telegram after disconnection from bus coupling unit 1 bit or 1 byte
Use conditions
| Operating temperature: | -5...45°C |
| Storage/transport temperature: | -20...70°C |
- storage at > 45°C reduces the service life
- integrated temperature sensor with output of the measured values via object
Attachments
Additional parameters
| Category: | MODULES |
|---|---|
| Design: | Berker Q.1/Q.3/Q.7/Q.9 |
| Material: | Thermoplastic |
| Colour: | Anthracite matt |
| Surface: | Velvet |
| Temperature: | operating -5 ... +45`C |
