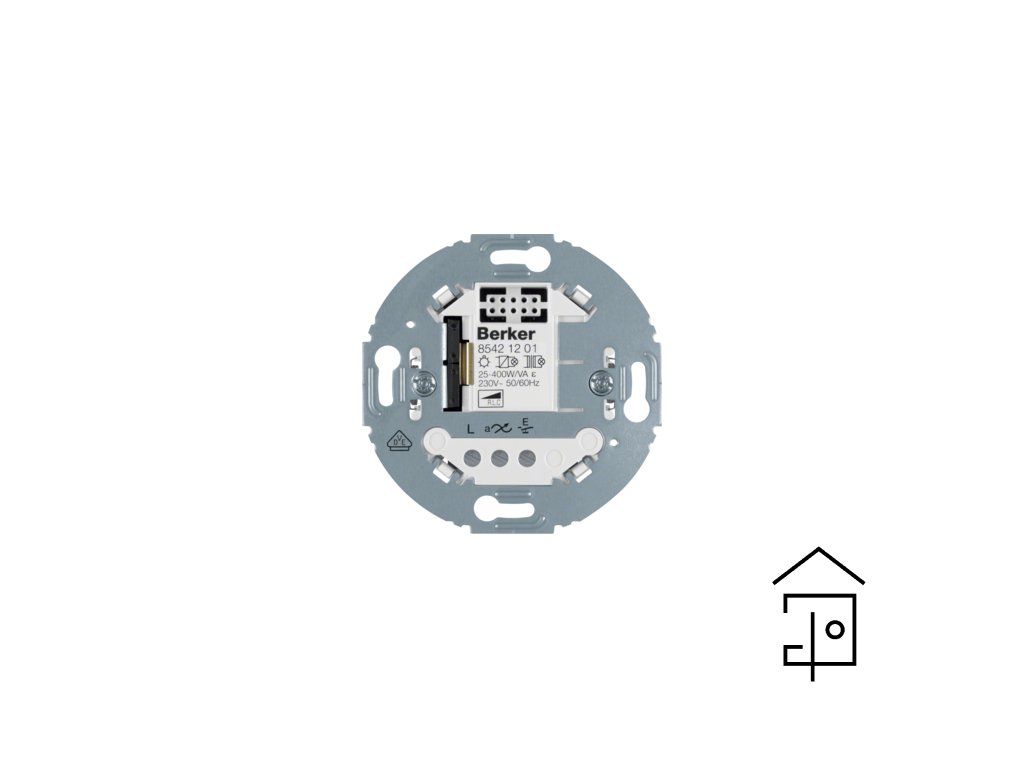

Universal touch dimmer 1gang Electronics platform
Technical Characteristics
|
| Frequency | 50/60 Hz |
| Operating voltage | 230 V AC |
| Fuse | short-circuit and overload proof (electronic fuse) |
| Dimmable conventional transformers | 25…400 VA |
| Power consumption (standby) | < 0,3 W |
| Electronic transformers and dual-mode transformers | 25…400 W |
| Relative humidity (without condensation) | 0…65 % (without condensation) |
| Extension unit input | with extension unit input for push-button (NO contact), single-surface operation and motion detector extension unit |
| Colour | not applicable |
| Material | Plastic/metal |
|
|
| Insertion depth | 32 mm |
| Dimmable energy-saving lamps | 13…80 W |
| Dimmable 230 V retrofit LED lamps | 5…70 W |
| 230 V incandescent lamps and halogen lamps | 25…400 W |
| Installation mode | with spreader claws |
| Screw terminals (max.) | 2 x 1,5/1 x 2,5 mm² |
| Number of substations | unlimited |
|
|
| Load cable length | max. 100 m |
| Cable length, extensions | max. 50 m |
|
|
|
|
| Operating temperature | -5…45 °C |
|
|
| Application, usage | Light control, KNX radio- operating systems, Motion detector |
| Main design line | Electronics platform |
| Secondary design line(s) | Serie 1930, Series R.classic |
Attachments
Additional parameters
| Category: | MODULES |
|---|---|
| Weight: | 0.071 kg |
