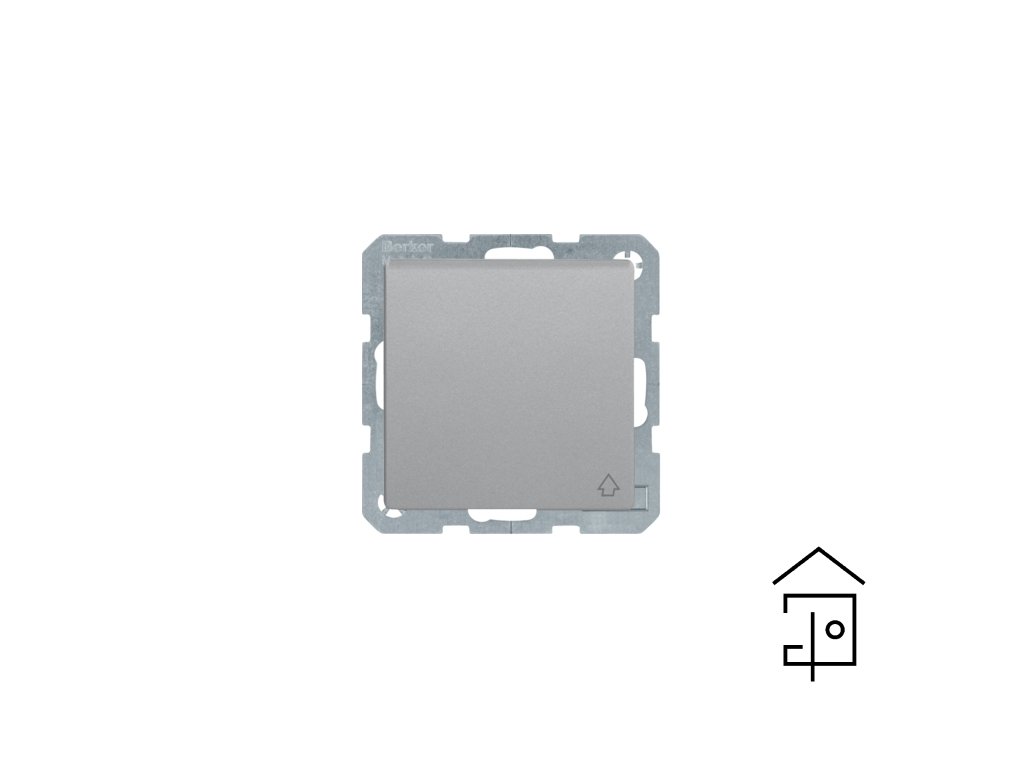

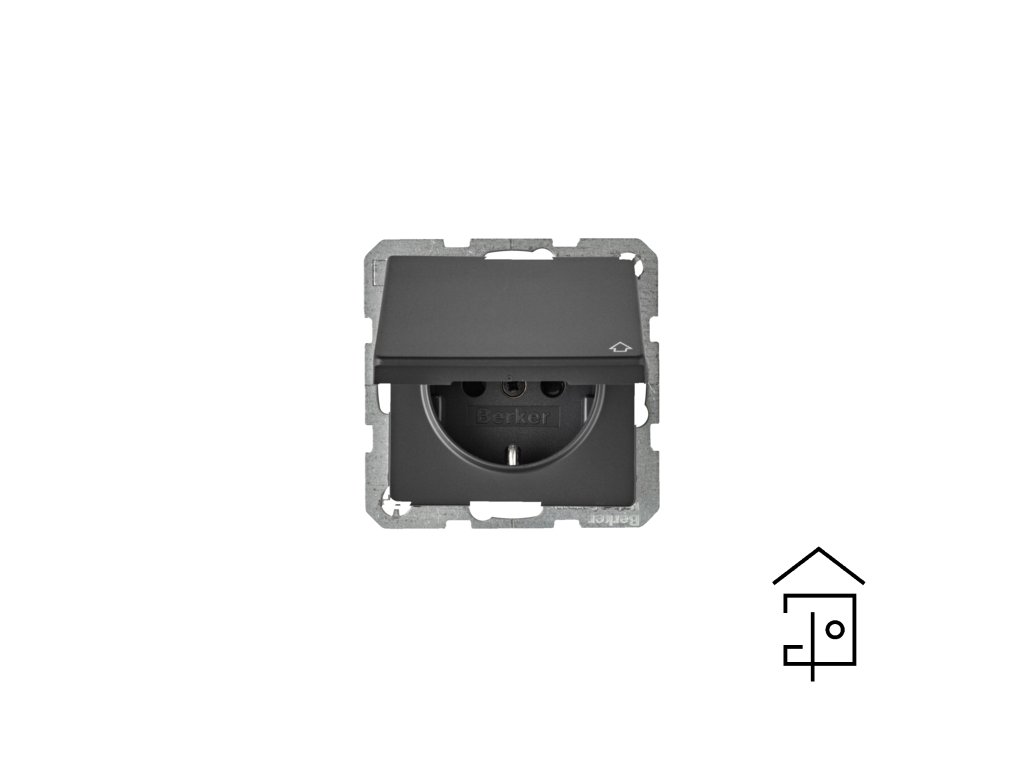

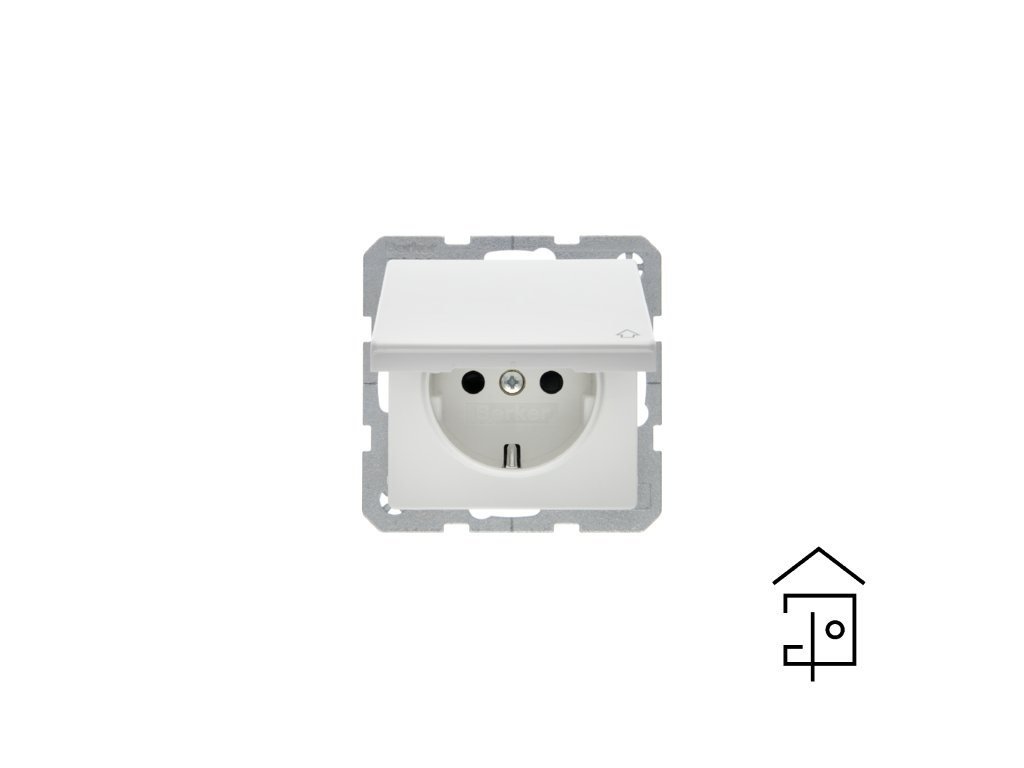

SCHUKO socket outlet with hinged cover, enhanced contact protection, IP44, Berker Q.1/Q.3/Q.7/Q.9
Characteristics
Architecture
| Fixing mode: | flush-mounting |
| Installation mode: | with spreader claws |
Main electrical features
| Nominal/rated voltage: | 250 V/250 V AC |
| Frequency: | 50/60 Hz |
| Rated current: | 16 A |
| Power consumption: | 0,25 W/0,35 VA |
Connection
| Conductor cross-section: | max. 2,5 mm² |
| Insertion depth: | 32 mm |
| Connection terminals: | IEC 60884-1 |
Material & Colour
| Colour of design line: | polar white |
| Colour: | white |
| RAL colour: | RAL 9010 - pure white |
| Material: | Duroplastic |
| Surface appearance: | Velvety |
| Colour of design line: | anthracite |
| Colour: | anthracite charcoal grey |
| RAL colour: | RAL 7021 - black grey |
| Material: | Duroplastic |
| Surface appearance: | Velvety |
| Colour of design line: | aluminium |
| Colour: | aluminium |
| RAL colour: | RAL 9006 - white aluminium |
| Material: | Duroplastic |
| Surface appearance: | Velvety |
Additional information
- With enhanced contact protection
- Plug-in lift terminals
- Self-closing lid
- Protection index IP44, when using appropriate sealing kit
- Protection against mechanical impacts IK02
Attachments
Additional parameters
| Category: | MODULES |
|---|---|
| ? Protection index IP: | IP44 |
